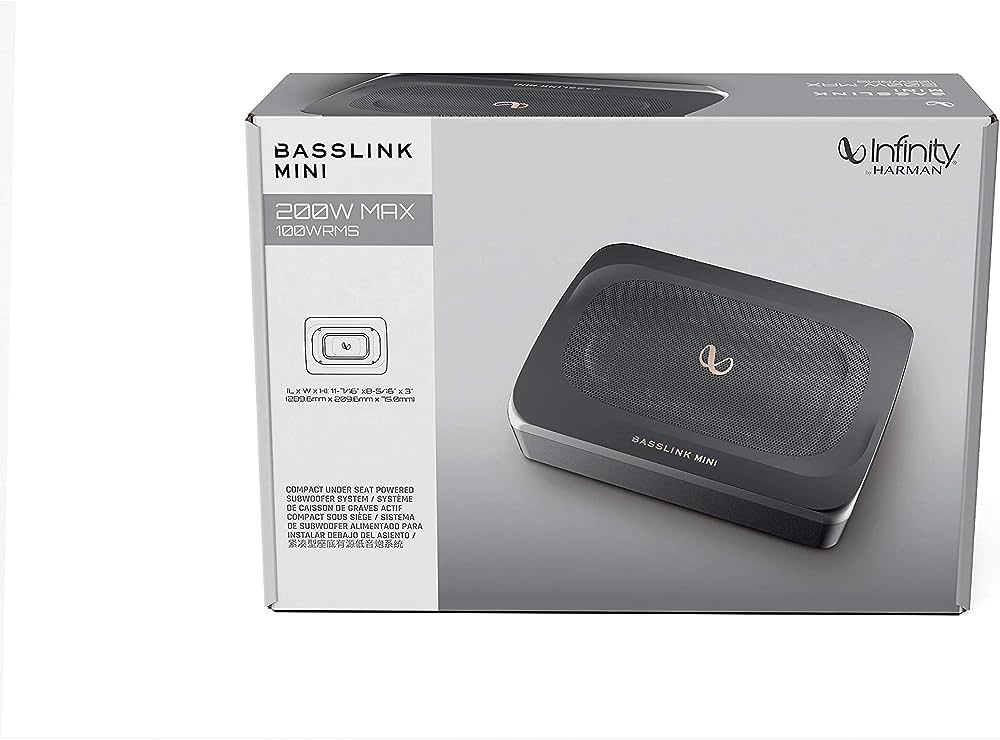

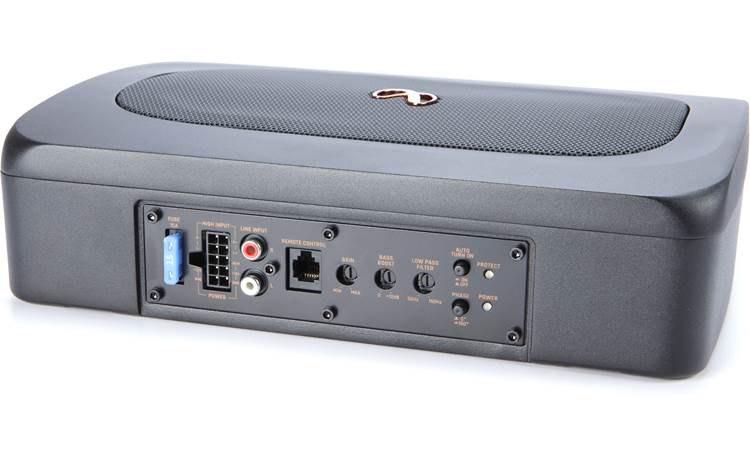

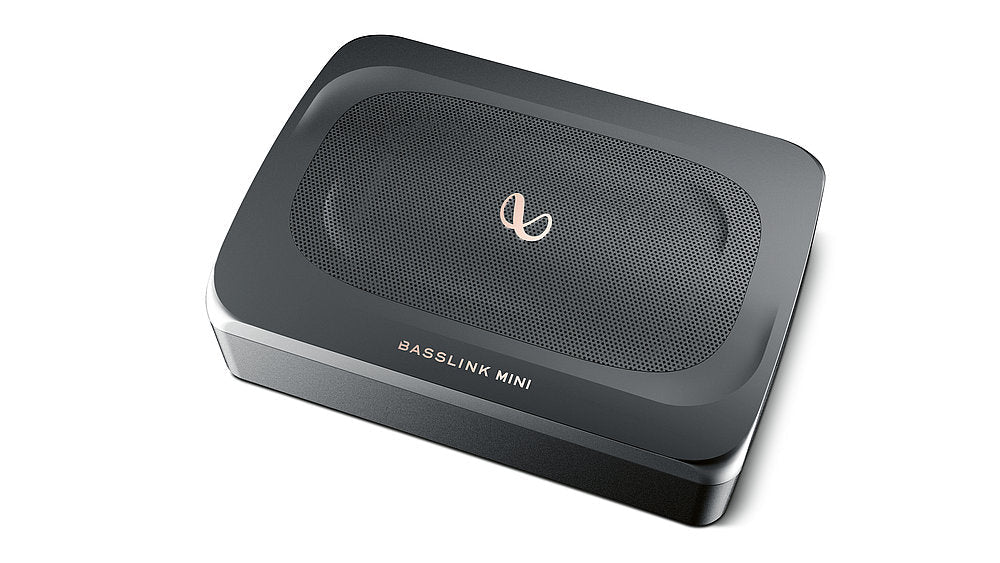

Infinity BassLinkMini 200w 8" Active Subwoofer

Infinity BassLinkMini 200w 8" Active Subwoofer

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

General Specifications

Driver Complement: 6"x8"(152mmx203mm) Subwoofer
Amplifier Power: 100Wrms; 200W Max
Frequency Response: 30Hz – 150Hz
Fuse: 15A
Maximum Current Draw: 13 A
Quiescent Current Draw: <600 mA
Input Sensitivity: 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
Crossover Frequency: 50 Hz – 150 Hz
Crossover Slope: 12 dB/octave
Bass Boost: 0dB to + 12dB @ 50Hz
Dimensions (L x W x H):  (289.6mm x 209.6mm x 75.0mm)
Weight: 3.73kg
