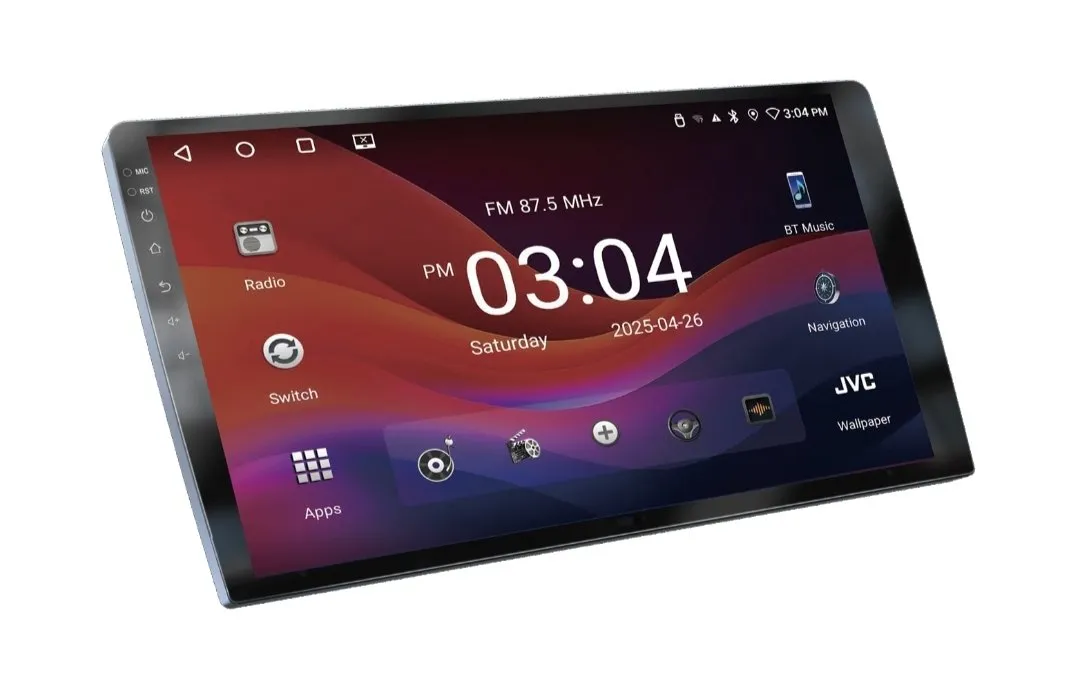

JVC KW-U3000-09 Media Player 9 inch Android Auto/Apple Car Play

JVC KW-U3000-09 Media Player 9 inch Android Auto/Apple Car Play

KWU3000-09

Please view price list or log in to see wholesale pricing.

  • Wireless Android Auto/Apple Car Play
  • 9-inch HD (1280×800), OGS Capacitive Display
  • Mirroring for Android and iPhone via USB or Wi-Fi (By EasyConnection App)
  • Built-in Wi-Fi, Bluetooth®
  • Bluetooth Hands Free Call, Bluetooth Streaming Music
  • Internal and External Microphones (Echo Cancellation Supported)
  • RAM / ROM : 2G / 32G
  • 32-Band EQ / Balance / Bass Boost
  • Low Pass Filter
  • 2.0V / 2.1 Pre-Outs (Front L/R + Subwoofer)
  • 2-Channel Camera Input (AHD/CVBS）
  • Rear AV Input (Visual : RCA, Shared with the Front Camera)
  • Rear AV Output (Visual : RCA)
  • 360° Surround View Input Connector (function not included, Compatible with optional products)
  • 1× Video Input, 1× AUX Input
  • Output Power : 50W x 4 (MOSFET)
  • Video : MPEG1, 2, 4 / H.264 / MKV
  • Audio : FLAC / MP3 / WAV
  • Picture : JPEG / BMP / GIF / PNG
  • FM / AM (Support Region Switching）
  • GPS Antenna : GPS / Beidou / Galileo / Glonass
  • Support Optional External Canbox Decoder
Monitor
Screen Size
9 inches (diagonal) wide
High Definition Monitor (1280×800)
Yes
Touch Panel Type
WXGA Capacitive
Touch Control
Yes
Multilanguage Display
Yes
Radio Tuner
DAB+ Tuner
Yes (Optional external module）
Radio Data System (RDS)
Yes
Media Playback
MP3 Compatible with Tag
USB
WAV Compatible with Tag
USB
FLAC Compatible with Tag
USB
MPEG-1 / MPEG-2 Compatible
USB
MPEG-4 Compatible
USB
H.264 Compatible
USB
MKV Compatible
USB
USB
USB Port
x 2
Location
Rear
Bluetooth®
Built-In Bluetooth
Yes (Version 5.0, Hands-Free MIC Built-in)
*Available functions depend on mobile phone.
Hands Free Call (HFP)
Yes
Wi-Fi Control
Built-in Wi-Fi
Yes
Android Control
Mirroring for Android Phone
Yes (via Wi-Fi or USB)
Android Music Playback
Yes (via Bluetooth®)
iPod/iPhone Control
Mirroring for iPhone
Yes (via Wi-Fi or USB)
iPhone Music Playback
Yes (via USB or Bluetooth®)
Audio
Maximum Power Output (Front & Rear)
50W x 4
EQUALIZER
32-Band
High-Pass Filter/Low-Pass Filter
– /Yes
Bass Boost (Hyper Bass System)
Yes
Inputs and Outputs
Pre-Out Terminals
2.1 Pre-Outs (Front L/R + Subwoofer)
Pre-Output Level
2V
AV Input
RCA x 1
Video Out
RCA x 1
Rear View Camera
Yes (AHD / CVBS)
HD Camera Input
Yes
