Pioneer

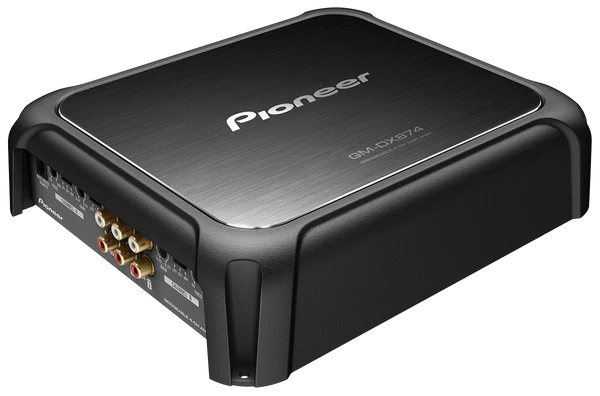

Pioneer GM-DX874 4X100W RMS 4-Channel Amplifier

Pioneer GM-DX874 4X100W RMS 4-Channel Amplifier

Pioneer GM-DX874

  • Amplifier Class: Class FD
  • No. of Channels: 4/3/2
  • Max.power output: 200 W x 4 (4Ω) 300 W x 4 (2Ω) 600 W x 2 (4Ω Bridged)
  • RMS power output: 100 W x 4 (4Ω) 150 W x 4 (2Ω) 125 W x 4 (1Ω) 300 W x 2 (4Ω Bridged)
  • Frequency Response: 10 Hz to 50 kHz
  • Impedance: 1Ω to 8Ω
  • Total Harmonic Distortion: (THD)<0.05%
  • S/N Ratio>95 dB
  • RCA Outputs:  (Press- Through)Yes (A-Ch)
  • Speaker Level Input
  • Automatic Signal Sensing and Turn-On
  • Crossover Type: Variable HPF/LPF
  • Crossover Frequency: 40 Hz to 500 Hz
  • Bass Boost Frequency: 50 Hz
  • Baas Boost Level: 0 dB to 18 dB
  • Bass Boost Remote: (B-Ch)
  • Dimensions: 252 mm x 60 mm x 215 mm
