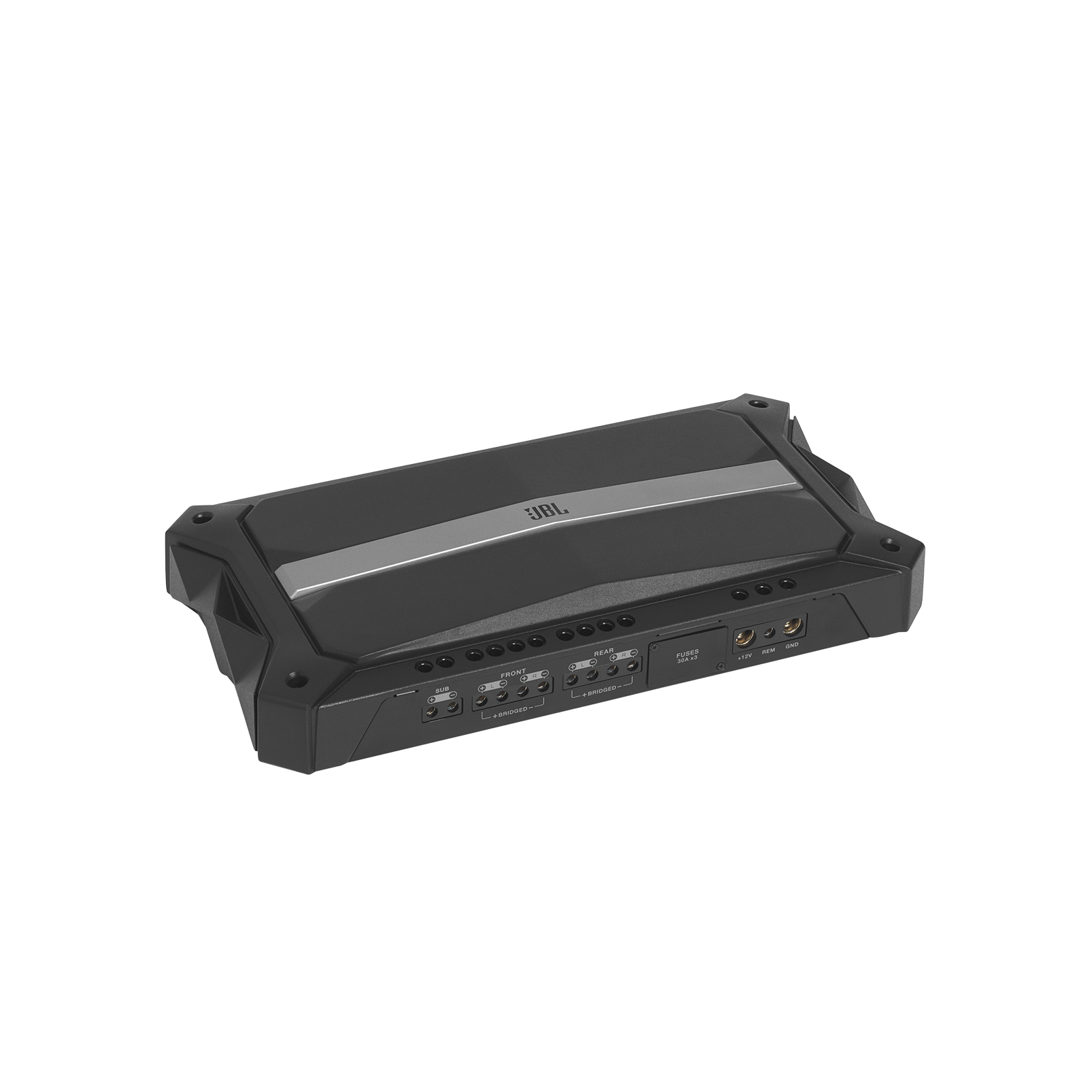

Stadium 5

Stadium mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers – and the performance you expect from JBL. The comprehensive all new E.A.R.L terminal and power adapter (5-channel & mono block) enables easy installation and optimized performance. For the 5-channel and mono amplifier models, the remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Stadium amplifiers give you power to shape your car audio experience in new ways.

General Specifications

High-performance, full-range, 5-channel Class D car audio amplifier

Max Power

2300W Peak

Full Range Channels 75Wrms x 4, <0.1% THD+N

Power Output, 4Ω



Full Range Channels 100Wrms x 4, <0.1% THD+N

Power Output, 2Ω



Full Range Channels 200Wrms x 2, <0.3% THD+N

Power Output, 4Ω Bridged

Signal-to-Noise Ratio

>=80dB (ref 1W output @ 4Ω)

Subwoofer Channel 350Wrms x 1, <0.1% THD+N

Power Output, 2Ω



Subwoofer Channel 200Wrms x 1, <0.1% THD+N

Power Output, 4Ω

Signal-to-Noise Ratio

>80dB (ref 1W output @ 2Ω)

High Efficiency, Low Distortion Class D Design
